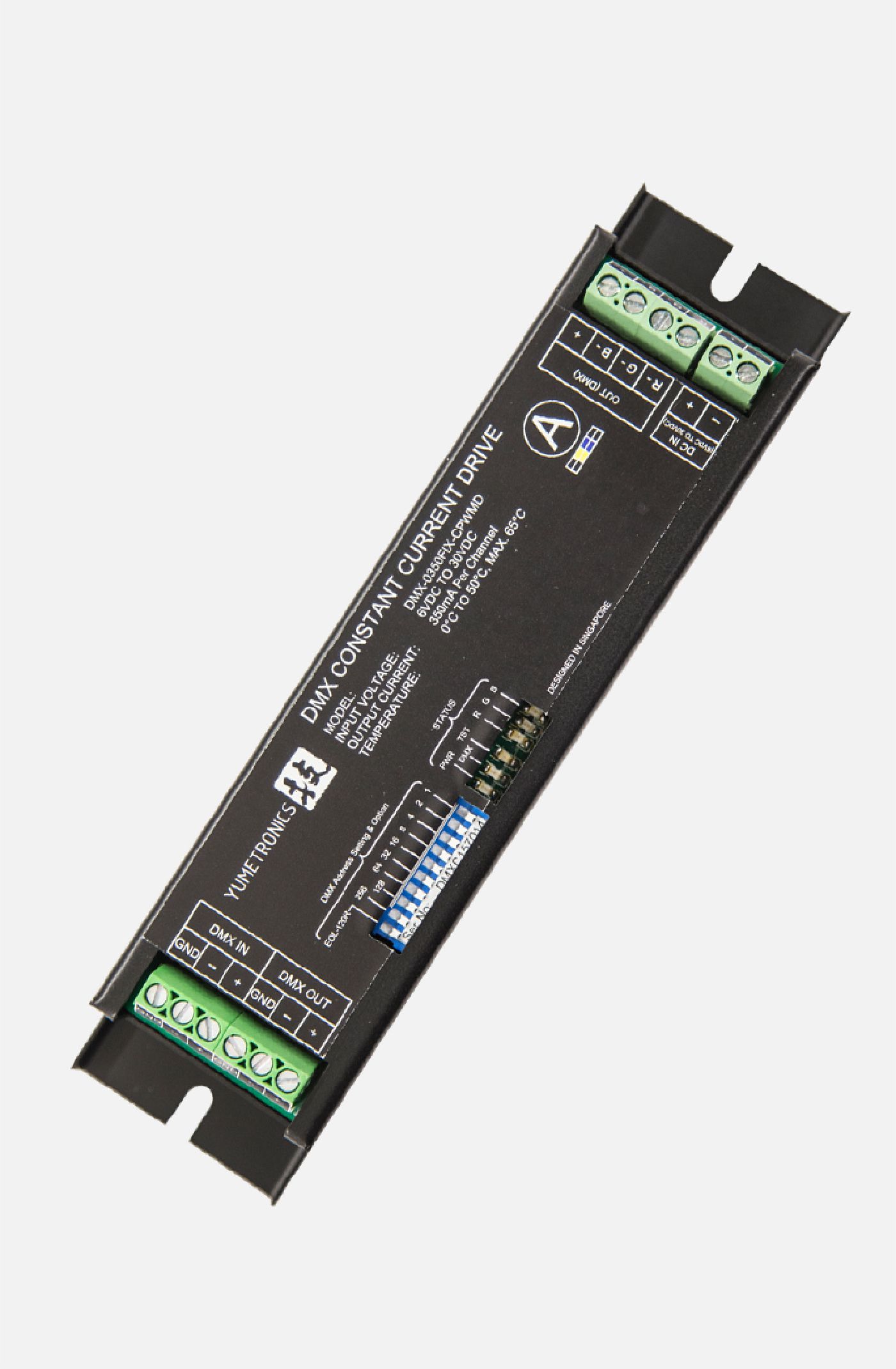

CONSTANT CURRENT

Interface: 2 x screw terminal for Power in – 6Vdc to 30Vdc (12 – 22 AWG)
4 x screw terminal for LED fixture output (12 – 22 AWG)
3 x screw terminal for DMX in (12 – 22 AWG)
3 x screw terminal for DMX out (12 – 22 AWG)

General: USITT-DMX512-A DMX protocol standard
DMX PWM frequency – 200Hz, constant current
switching frequency – 254kHz Wide input voltage
range of 6Vdc to 30Vdc Allow up to 120 drivers
to be connected in one single DMX line
Operating temperature range from 0°C to 50°C,
with a maximum temperature of 65°C

Power Dissipation (loss):0.45 watt (idle) – no load
@ Vin 30Vdc, 25°C 1.85 watt (typical) – typical façade load
6.05 watt (max) – full load
